SharXS

SharXS HTI and
SharXS Brilliant

Ralph Larmann

A large family with a real bite

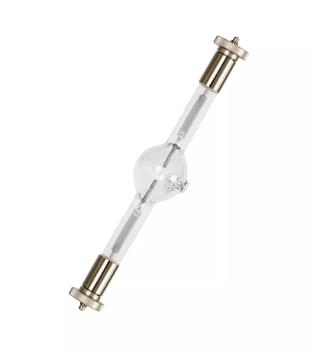

SharXS HTI – this modular family of lamps unites two technologies, which transform a performance into an extraordinary experience. First, short-arc technology means that the electrodes in these double-ended HTI metal halide lamps are closer together. This makes them considerably higher in luminance than traditional metal halide lamps of the same wattage and results in a better overall system efficiency. Second, the XS (eXtreme Seal) technology has distinct advantages. The heat-sensitive areas within the pinch seals are covered by a protective layer, which means that the need for cooling – and thereby the noise output of the fixture – is significantly reduced. All this allows for simpler, more compact solutions that keep background noise at a minimal level.

Let there be light

Whether at concerts, theater performances, discos or festivals – SharXS HTI lamps are on location when the action starts. Their tremendous luminance and high reliability ensure perfectly choreographed lighting effects. The compact design allows great flexibility for sensational possibilities for lighting professionals.

All SharXS lamps offer:

  • Shor-arc technology for high efficiency
  • High thermal load capacity thanks to eXtreme Seal (XS) technology - enables high pinch temperatures of up to 450 °C
  • Hot restart capability
  • Compact modular design - the same dimensions for all wattages within each SharXS family
  • Pre-focus base for accurate lamp installation

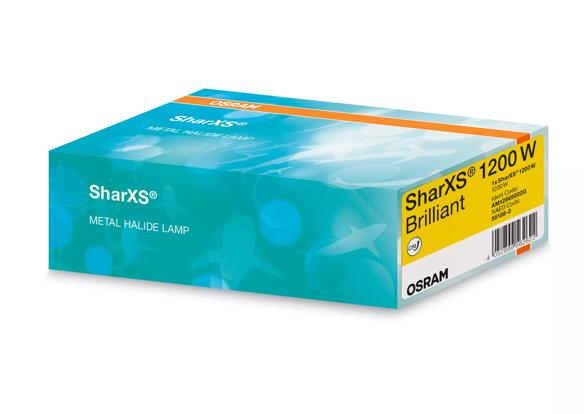

The new SharXS Brilliant - High CRI for a natural tone of light

  • Natural tone of light with CRI as high as 90
  • Modular design with overall length of 136 mm
  • Products: SharXS 1000W Brilliant, SharXS 1200W Brilliant, SharXS 1500W - Brilliant

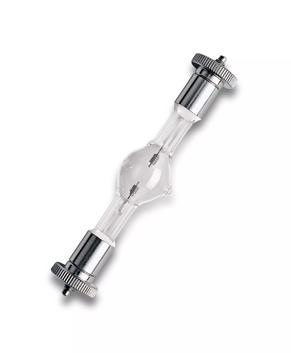

Baby SharXS - All the benefits of the SharXS family bundled into a compact 93mm design

  • Short 5 mm arc for high efficiency
  • Overall length of 93 mm

Maxi SharXS - with an extra dose of power

  • Compact, double-ended lamp with 2000W
  • Short arc of 10mm for very high luminance
  • Overall length of 220 mm

Download: SharXS brochure

Products

Entertainment Lamp Replacement Tool

OSRAM’s SIRIUS HRI, Lok-it! and SharXS lamps aim to entertain

OSRAM lamps coordinate with entertainment fixtures from all major manufacturers.

To find an ideal match for your moving head, select the brand, followed by the model.

To find an ideal match for your OSRAM lamp, select the OSRAM lamp series, followed by the lamp name.

Entertainment Lamp Replacement Tool
